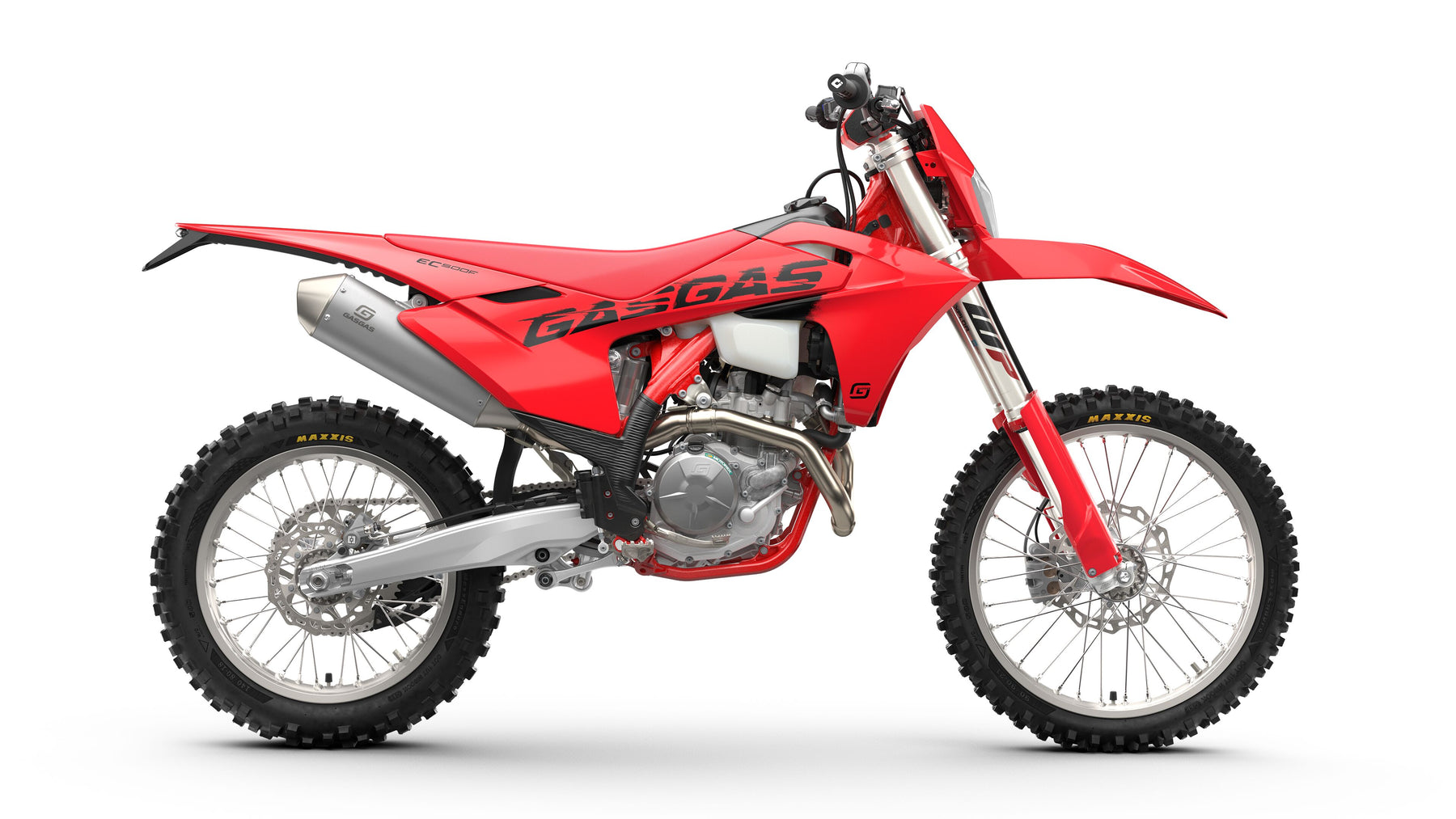

GASGAS EC 500F | 2025

FOR THE FEARLESS.

For riding long, flowy trails and super fun wide open spaces there may not be a better tool for the job than our awesome EC 500F! Big on power, big on fun, and big on guaranteeing good times in the dirt, our biggest capacity enduro bike is an absolute blast to ride. It may sound like our half-liter hero is a real powerhouse, but thanks to its modern electronics, updated chassis, and supple WP suspension, the EC 500F is a really nimble steed and the bike of choice for many enduro riders worldwide!

ENGINE

• Primary drive: 29:72
• Transmission: 6-speed
• Battery capacity: 2 Ah
• Cooling: Liquid cooled
• Secondary gear ratio: 14:50
• Starter: Electric starter
• Stroke: 72 mm
• Bore: 95 mm
• Clutch: DDS wet multi-disc clutch, Braktec hydraulics
• Compression ratio: 12.75
• Displacement: 510.9 cm³
• EMS: Keihin EMS
• Design: 1-cylinder, 4-stroke engine
• Fuel-Mixture Generation: Keihin EFI, throttle body 42 mm

CHASSIS

• Weight (without fuel): 111.7 kg
• Tank Capacity: 9 l
• Wheelbase: 1.489 mm
• Front brake disc diameter: 260 mm
• Rear brake disc diameter: 220 mm

• Front brake: Disc brake
• Rear brake: Disc brake

• Chain: 520 X-Ring
• Frame design: Central double-cradle-type 25CrMo4 steel
• Front suspension: WP XPLOR-USD, Ø 48 mm
• Ground clearance: 343 mm
• Handlebar: Neken, aluminium Ø 28/22 mm
• Rear suspension: WP XACT Monoshock with linkage
• Seat height: 956 mm
• Silencer: Aluminium
• Steering head angle: 63.9 °
• Rear Subframe Design: Aluminum
• Suspension travel (front): 300 mm
• Suspension travel (rear): 300 mm
• Tyre dimensions: 90/90; 140/80
• Wheels: 21 x 1.60"; 18 x 2.15"
