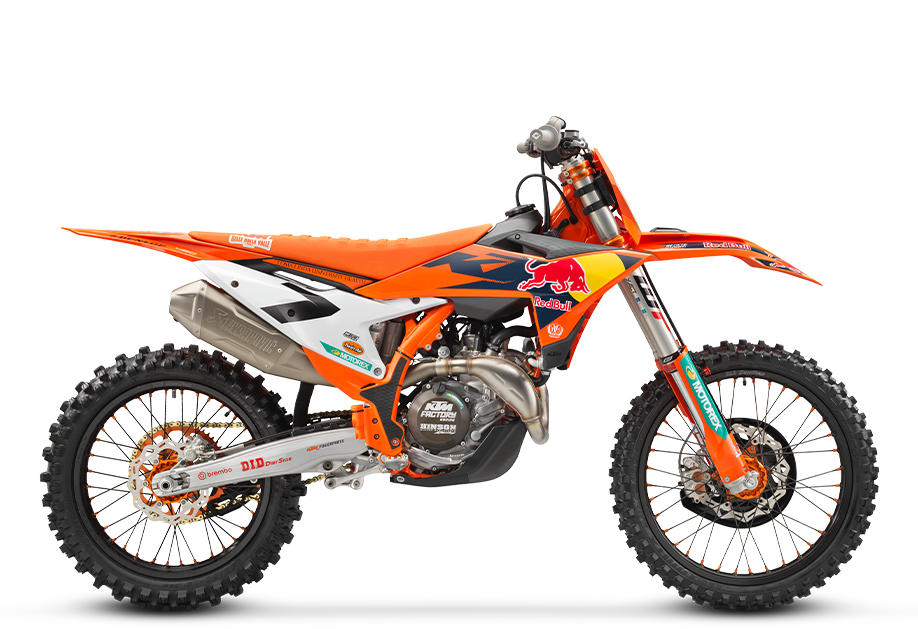

KTM 450 SX-F FACTORY EDITION | 2025

TEARING AHEAD.

KTM lives and breathes a READY TO RACE mantra, and the FACTORY EDITIONS are special, limited-run models that erase the last few spec variances between what is 'stock' and what is 'factory'. It's then up to the rider how much they want to make the difference: how fast are you and how much do you want it? For 2024 the KTM 450 SX-F FACTORY EDITION inherits the basis of the 2024 peerless KTM SX-F motocross racers and then, thanks to a list of KTM POWERPARTS additions, gets as close to the Pros as its possible to be. This specific bike comes with a fresh chassis, and a brand-new Connectivity Unit that allows more interaction and setup possibilities than ever before. The 2024 KTM 450 SX-F FACTORY EDITION has been crafted by racers for the ultimate racecraft. Try to catch it.

2024 FACTORY EDITION highlights:

• ORANGE GLOSSY ‘FACTORY’ FRAME
• 2K ORANGE FACTORY FRAME PROTECTORS
• FACTORY TANK SPOILERS
• CONNECTIVITY UNIT OFFROAD COMPATIBLE FRONT FENDER
• CONNECTIVITY UNIT OFFROAD INCLUDED
• WHITE VENTED AIRBOX COVER IN BY-PACK
• BLACK ENGINE MOUNTS
• UPDATED SUSPENSION SETTINGS & XACT AER FORK
• RED BULL KTM FACTORY RACING GRAPHICS WITH #4 AND #7 OPTIONS FOR CHASE SEXTON OR AARON PLESSINGER
• RIBBED FACTORY SEAT COVER
• ORANGE CNC FACTORY TRIPLE CLAMPS
• SEMI-FLOATING FRONT BRAKE DISC
• FACTORY FRONT BRAKE DISC GUARD
• FACTORY SKID PLATE
• GREY, SOFT ODI GRIPS
• DID FACTORY WHEEL SET
• DUNLOP GEOMAX TYRES
• ORANGE REAR SPROCKET
• P FACTORY START DEVICE
• GOLD CHAIN
• AKRAPOVIC SLIP-ON EXHAUST
• HINSON CLUTCH COVER


ENGINE

• Transmission: 5-speed
• Starter: Electric starter
• Stroke: 63.4 mm
• Bore: 95 mm
• Clutch: Wet, DDS multi-disc clutch, Brembo hydraulics
• Compression ratio: 13.6
• Displacement: 449.9 cm³
• EMS: Keihin EMS
• Design: 1-cylinder, 4-stroke engine
• Fuel-Mixture Generation: Keihin EFI, throttle body 44 mm

CHASSIS

• Weight (without fuel): 103.9 kg
• Tank capacity (approx.): 7.2 l
• Wheelbase: 1493 mm
• Front brake disc diameter: 260 mm
• Rear  brake disc diameter: 220 mm
• Front brake: Disc brake
• Rear brake: Disc brake
• Chain: 520, Non-sealed
• Frame design: Central double-cradle-type 25CrMo4 steel
• Front suspension: WP XACT-USD, Ø 48 mm
• Ground clearance: 343 mm
• Handlebar: Neken, aluminium Ø 28/22 mm
• Rear suspension: WP XACT Monoshock with linkage
• Seat height: 958 mm
• Silencer: Akrapovič titanium silencer
• Steering head angle: 63.9 °
• Rear Subframe Design: Aluminum reinforced polyamide
• Suspension travel (front): 310 mm
• Suspension travel (rear): 300 mm
• Wheels: Spoked wheels with aluminium rims
