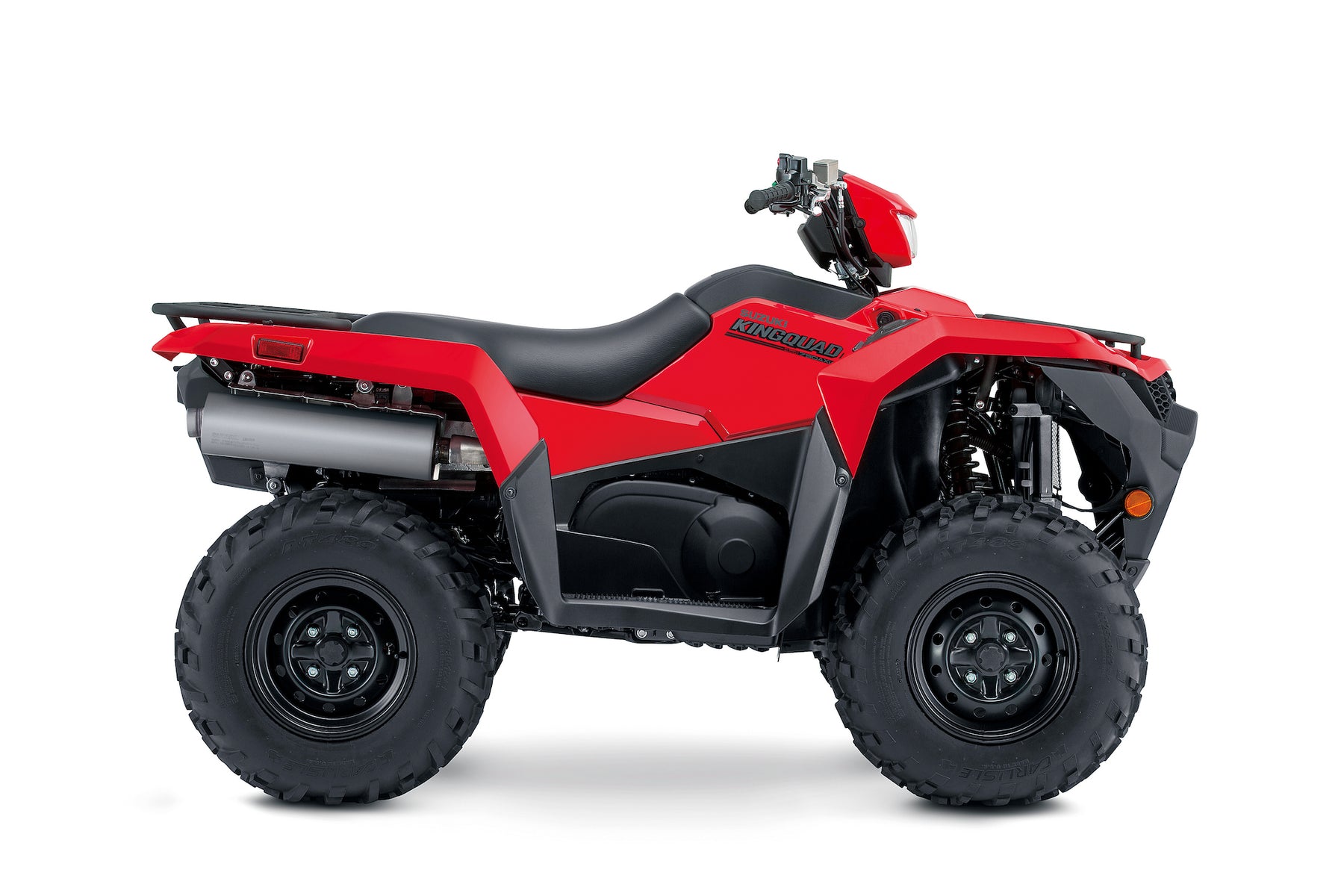

Suzuki KingQuad 750 AX 4x4

BUILT FOR THE TOUGHEST CONDITIONS
Our most powerful model, built for the toughest environments and most arduous working conditions.

FEATURES

FUEL INJECTION
Fuel injection improves throttle response and fuel efficiency, while delivering power consistently and improving starting.

SEALED OIL-BATHED MULTI-DISC REAR BRAKE
Experience consistently strong stopping power and reliability from the sealed oil-bathed multi-disc rear brake unit, which prevents mud, dirt or water from contaminating the brakes.

FUEL INJECTED ENGINE
Smooth and useable power for any task, due to the instant throttle response and improved fuel efficiency designed specifically for all terrain use.

FULLY INDEPENDENT SUSPENSION
Feel comfortable all day long. The fully independent front and rear suspension, with the 5-way adjustable preload settings allow optimum traction whilst maintaining a superior ride quality.

T-SHAPED SEAT FOR ALL-DAY COMFORT
We understand that when you spend hours on your ATV you need it to be comfortable. Our unique T-shaped seat, which we invented years ago and have fitted to our ATVs ever since, provides all-day comfort and freedom of movement you simply won’t find anywhere else.

LT 750 AX SPECIFICATIONS:

• Dimensions (L x W x H): 2,135 mm x 1,250 mm x 1,245 mm
• Wheelbase: 1,280 mm
• Ground Clearance: 270 mm
• Seat Height: 880 mm
• Curb Mass: 304 kg
• Fuel Tank: 17.5 L
• Engine Type: 4-stroke, 1-cylinder, liquid-cooled, DOHC
• Displacement: 722 cm³
• Bore x Stroke: 104.0 mm x 85.0 mm
• Transmission: CVT. 2-speed forward with reverse
• Suspension Front: Independent, double wishbone, coil spring, oil-damped
• Suspension Rear: Independent, double wishbone, coil spring, oil damped
• Brakes Front: Disc twin
• Brakes Rear: Sealed oil-bathed multi-disc
• Tyres Front: AT25x8-12**, tubeless
• Tyres Rear: AT25x10-12**, tubeless
